DS WS 15 Wire saw
Category: Dismantlement > Mechanical Cutting Equipment > Saw-Wire
Reference # : Wire saw DS WS15 3x480V PR #2059946 Model No : DS WS 15 Wire saw
Electric wire saw (15 kW) for easy operation on heavy-duty cutting jobs with automatic wire tension
Benefits
Saw advance tension is easily adjustable at all times for maximum cutting performance
Smooth, stepless adjustment of the drive speed from the control console
Robust design with electrical overload protection and maintenance-free air cylinder
Water flow can be switched on and off from the control console
High performance diamond wire in fixed working lengths
Limitations
Technical Data
Wire saw DS WS15 3x480V PR #2059946
Motor power -15 kW
Power source - Electric
Min. generator power 40 kVA
Wire storage capacity 362.2 in
Weight 586.4 lb.
A-weighted emission sound pressure level 79 dB (A) 1
IP protection class IP 65 (EN 60529), IP 54 (EN 60529)
Comments
Applications
Structural alteration of buildings – cuts openings of all kinds and almost any shape
Sawing anything from heavily reinforced concrete to thick stonework
Technical demolition of structural components (bridges, chimneys, foundations)
Sawing in noise-sensitive location
Pictures
|

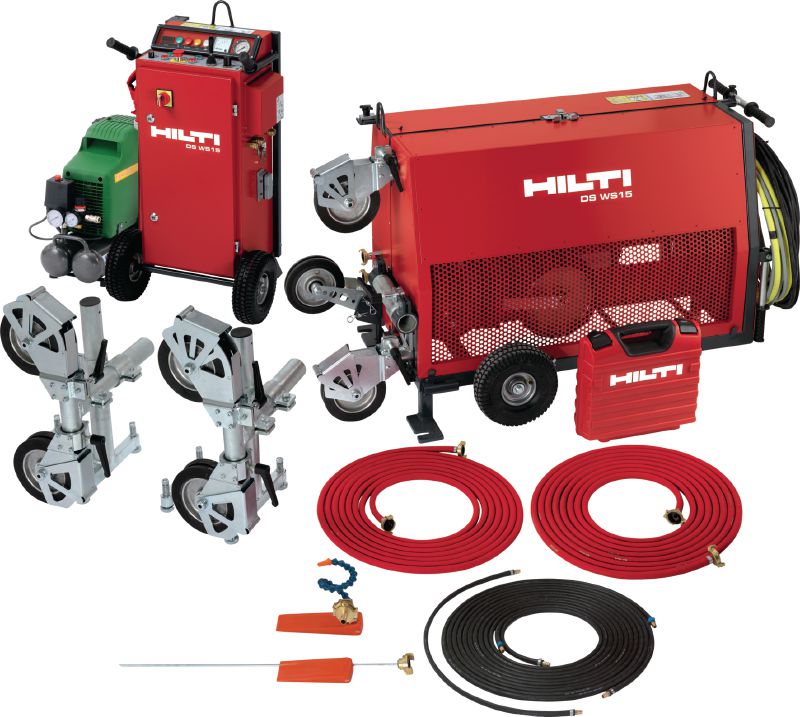

DS WS 15 Wire saw
|
