DSW 3018-E
Category: Dismantlement > Mechanical Cutting Equipment > Saw-Wire
Reference # : Wire saw DSW 3018-E 3x480V PR #2094616 Model No : DSW 3018-E
High power (30 kW) electric wire saw for outstanding heavy-duty cutting performance
Motor power: 30 kW
Power source: Electric
Min. generator power: 80 kVA
Controlled demolition or dismantling of structures
Applications that must be completed within a very short time frame, demanding highest sawing performance
Cutting heavily-reinforced concrete, masonry, stone or steel
Underwater applications (where the sawing wire runs partly under water)
Dry wire sawing applications (e.g. decommissioning of power plants)
Benefits
High sawing performance thanks to two powerful motors, each with 15 kW power output
High starting torque reduces effort required to "grind-in" the wire
Wire tension damping system reduces stress on the wire
Steplessly variable cutting speed with visual indicator
Easily adjustable guide pulley system for fast set-up
Limitations
Technical Data
Wire saw DSW 3018-E 3x480V PR #2094616
Motor power - 30 kW
Power source - Electric
Min. generator power - 80 kVA
Wire storage capacity - 724.41 in
Weight - 1212.5 lb.
A-weighted emission sound pressure level - 86.1 dB (A) 1
IP protection class - IP 65 (EN 60529), IP 54 (EN 60529)
Comments
Pictures
|

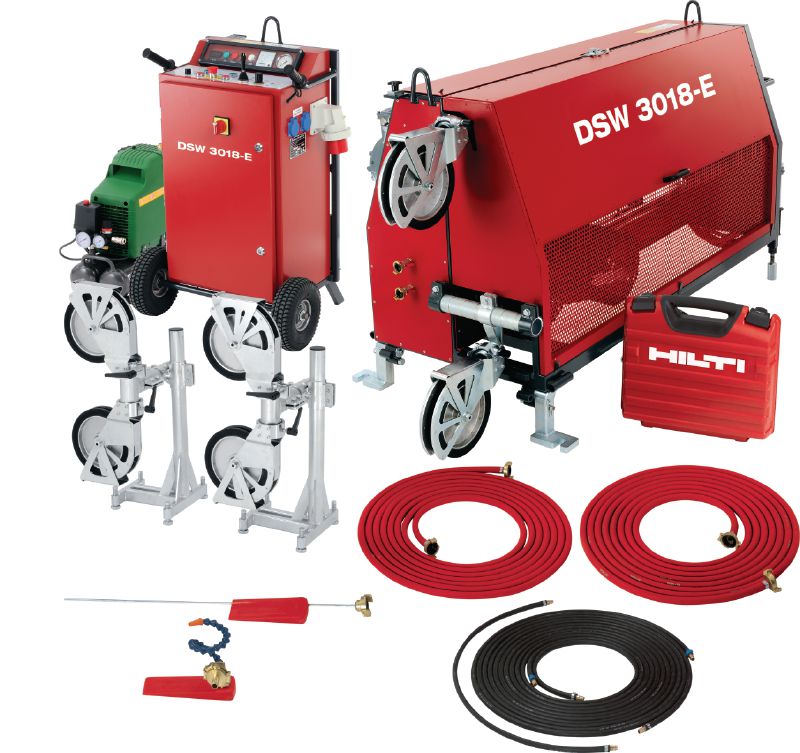

DSW 3018-E
|
