Sniper-GN
Category: Characterization > Inspection > Others
Reference # : Model No :

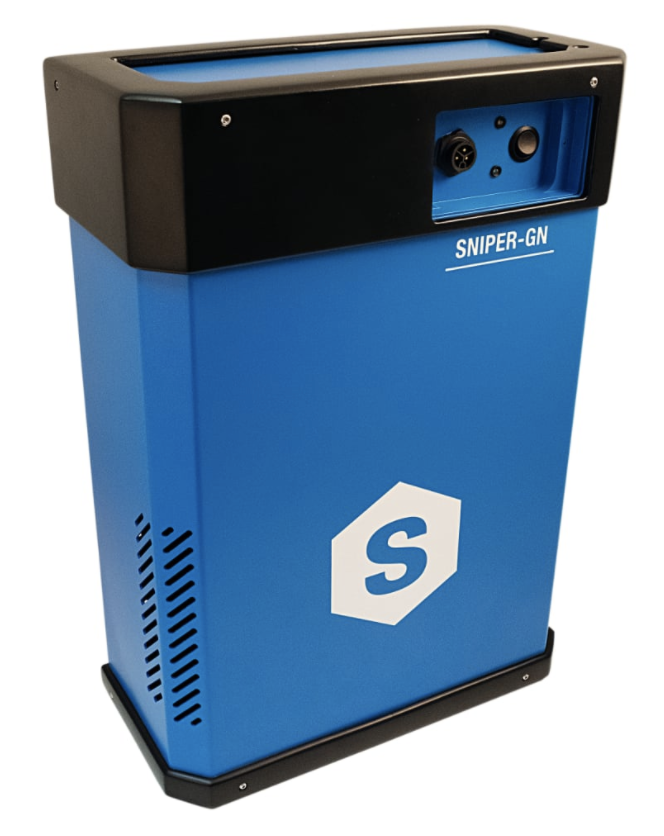

SNIPER-GN is a new compact and transportable instrument which integrates a Special Nuclear Material (SNM) isotope identifier with a high resolution hand-held gamma detector.
SNIPER-GN is easily deployable for rapid scanning of sensitive areas (restaurants, airports, subway stations, shopping malls, etc.) suitable for terroristic threats like dirty bomb and silent source. Its compact design makes it also suitable for a series of sequential measurements in-field making it ideal for orphan source searching.
Benefits
Detection, localization and quantification of radioactive materials as Special Nuclear Materials (SNM) or Radiological Dispersal Devices (RDD).
Gamma and gamma/neutron radiation detection and discrimination device.
Hand-held gamma spectrometer for radionuclide identification.
Integrated and complete radiation survey system.
Neutron source ID with discrimination between fissile material, alpha-n source and Plutonium.
Online pulse shape discrimination through 250 MS/s flash ADC.
CeBr3 scintillator detector for gamma spectroscopy.
Identification of gamma ray emitters and NORM sources.
Battery powered.
Compact, rugged and shockproof containing case.
Limitations
Standard procedure:
3 minutes warm up of the system at power up.
3 minutes background measurement.
Typical scanning times:
– 1 s for a gamma ray alarm
– 2 s for a neutron alarm
– 1 minute for identification of gamma or neutron emitter
Power supply:
Battery powered by pouch LiFePO4 rechargeable battery
– Nominal voltage: 12 V
– Capacity: 25 Ah
– Storage Temperature: Best 20±5C for longtime storage
– Cycle life: >1000 cycles
5 A for LiFePO4 battery charger included
Mechanical:
Compact sizes: (L x W x D) = 470 x 175 x 335 mm3
Easy transportable: weight < 10 kg
Rugged and shockproof containing case
Tablet:
10.1” display
Wi-Fi connection with the SNIPER-GN for data visualization
Report and data logging saved locally on the tablet SSD
*Optional: rugged tablet compliant with military standard
Neutron Gamma / PSD detector:
Dimension: 2” x 2”
Neutron source identification allows discriminating U, Pu, Cf or Am/Be sources
Flash Point: 144 °C
CeBr3:
Spectroscopy with isotope identification
Nuclide library compliant with the ANSI N42.34
Energy Resolution FWHM at 662 keV < 4.2%
Environmental:
Temperature range -20 ÷ 45 °C
